Low voltage pin insulatorsLow voltage pin insulators

Low voltage pin insulators

  • In accordance with  DIN norms.
  • Test method: IEC 60383-1
  • Color:brown and gray

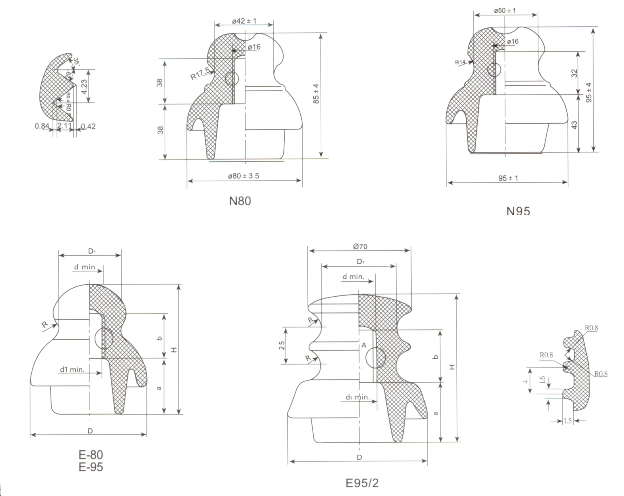

MAIN DIMENSTIONS AND STANDARD PARTICULARS

TYPE

Leakage distance

Minimum breaking load

One minute withstand voltage wet (kV)

Weight kg

N80

120

1250

10

0.4

N95

140

1250

10

0.57

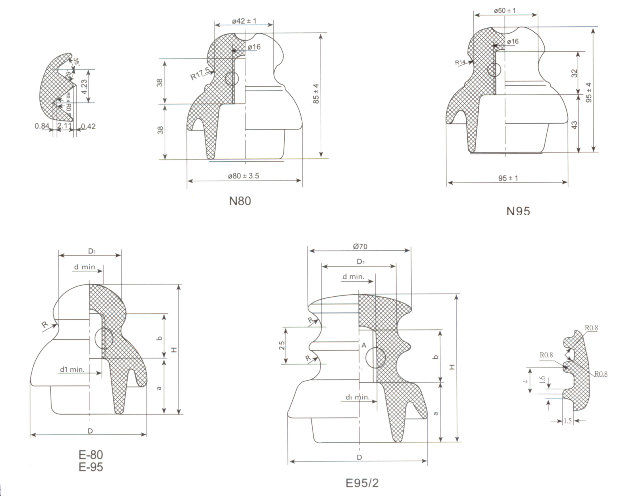

 TYPE

Main dimensions

Leakage distance

Minimum breaking load

One minute withstand voltage wet

Weight

D

H

D1

d1

min

d1

min

a

b

r

mm

mm

mm

mm

mm

mm

mm

mm

mm

kg

kV

kg

E-80

80

87

42

19

21

38

30

9

120

1250

10

0.4

E-95

95

97

50

22

24

41

35

14

140

1250

10

0.55

E95/2

95

100

50

22

21

41

35

10

130+30

1250

10

0.625
