3-36kV 10kA TBHB Lightning arresters

3-36kV 10kA TBHB Lightning arresters

  • standard; IEC and ANSI
  • Color: brown and gray

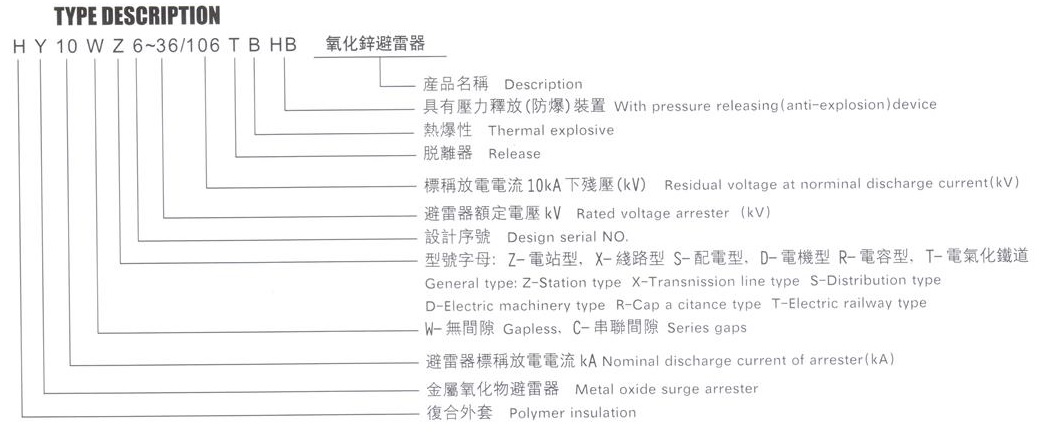

Arrester type

Length

mm

Rated voltage

(r.m.s)

kV

Arrester

Continuous

Operating

Voltage

(r.m.s)

kV

1/10μs

Steepest wave

Residual voltage 10Ka not exceeding

kVp

8/20μs

Lightning

Residual voltage 10ka not exceeding

kVp

30/60μs

Switching residual voltage 500A not exceeding

kVp

2ms

Rectangular withstand discharge capacity

A

4/10μs

Current impulse withstand discharge capacity

kA

Y10W6-3/9.1TBHB

288

3

2.55

10.2

9.1

6.8

400

100

Y10W6-6/18.2TBHB

336

6

5.1

16.3

18.2

13.5

400

100

Y10W6-9/28 TBHB

393

9

7.65

25.3

28

20.4

400

100

Y10W6-10/30 TBHB

393

10

8.4

33.6

30

22.4

400

100

Y10W6-11/33.7 TBHB

408

11

9.3

37.7

33.7

24.7

400

100

Y10W6-12/36.6 TBHB

423

12

10.2

41

36.6

27.1

400

100

Y10W6-15/45.6 TBHB

458

15

12.7

51.5

45.6

33.9

400

100

Y10W6-18/54.8 TBHB

503

18

15.3

61.5

54.8

40.6

400

100

Y10W6-20/58.9 TBHB

533

20

16.4

66

58.9

43.5

400

100

Y10W6-21/61 TBHB

533

21

17

68.5

61

45.1

400

100

Y10W6-22/64 TBHB

568

22

17.8

71.7

64

47.2

400

100

Y10W6-24/70.1 TBHB

593

24

19.5

78.6

70.1

51.9

400

100

Y10W6-27/79.2 TBHB

633

27

22

88.7

79.2

58.5

400

100

Y10W6-30/87.5 TBHB

678

30

22.4

98

87.5

64.8

400

100

Y10W6-33/99 TBHB

718

33

27.5

111

99

73.1

400

100

Y10W6-36/104 TBHB

758

36

29

117

104

77.1

400

100
