Tie top line post insulatorsTie top line post insulators

Tie top line post insulators

  • standard; IEC and ANSI
  • Color:brown and gray

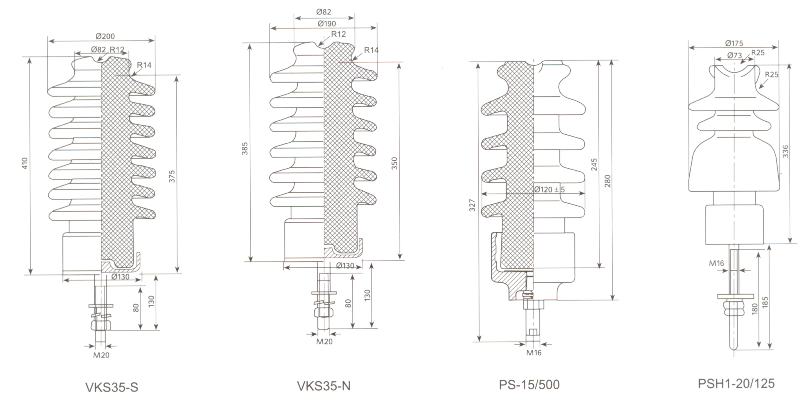

Cat.No.

VKS35-S

VKS35-N

PS-15/500

PSH1-20/125

Leakage distance/in mm

900

720

375

520

Dry arcing distance/in mm







260

Cantilever strength/1b kN

8

8

13

125



Average flashover voltage

Low-frequency

Dry/kV

100

100

80

90

Wet/kV

70

70

60

65

Critical impulse

Positive/ kV

170

170



150

Negative /kV









Radio-influence voltage data

Test voltage to ground /kV







22

Maximum RIV at 1.000kc /μV







100

Cat.No.

DA-35022Z

DA-45011Z

DA-55011Z

DA-75007Z

DA-35022K

DA-45011K

DA-55011K

DA-75007K

Leakage distance/in mm

10  254

14 356

22 559

29 737

10 254

14 356

22 559

29 737

Dry arcing distance/in mm

5/127

6 1/2  165

91/2  241

121/4  311

5/127

6 1/2  165

9 1/2  241

12 1/2  311

Cantilever strength/1b kN

2,800 1,270

2,800 1,270

2,800 1,270

2,800 1,270

2,800 1,270

2,800 1,270

2,800 1,270

2,800 1,270

Average flashover voltage

Low-frequency

Dry/kV

70

80

110

125

70

80

110

125

Wet/kV

65

70

100

115

50

60

85

100

Critical impulse

Positive/ kV

100

130

180

210

100

130

180

210

Negative /kV

125

155

205

260

125

155

205

260

Radio-influence voltage data

Test voltage to ground /kV

15

15

22

30

15

15

22

30

Maximum RIV at 1.000kc /μV

50

100

100

200

50

100

100

200

Net weight/lb kg

13/5.9

16/7.3

22/10.0

28/12.7

13/5.9

15/6.8

22/10

26/11.8
