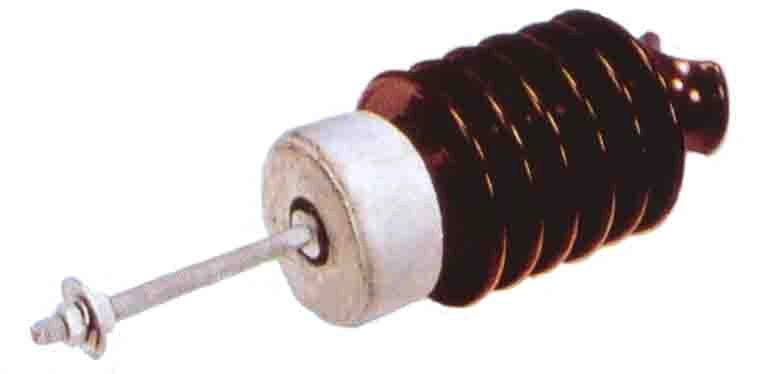

line post insulators
- horizontal clamp type line post insulators are manufactured and tested to the requirements of ANSI Standard C29.7
- Color:brown and gray
|

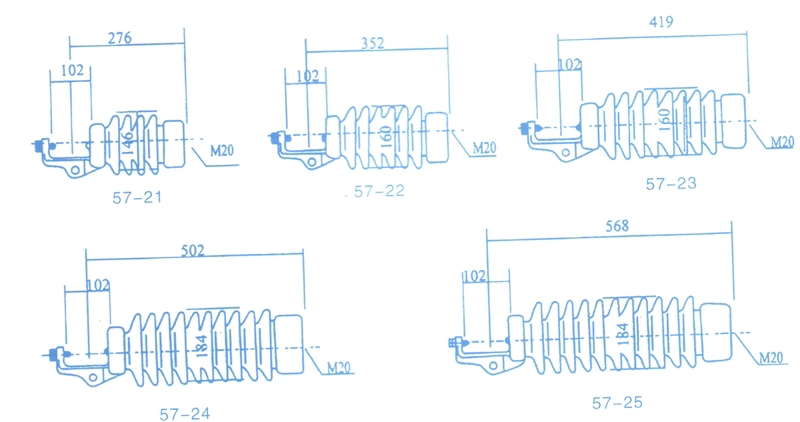

ANSI Class |
57 -21 |
57-22 |
57-23 |
57-24 |
57-25 |
||
|
Leakage distance/ mm |
356 |
559 |
737 |
1015 |
1145 |
||
|
Dry arcing distance/ mm |
165 |
241 |
311 |
368 |
438 |
||
|
Cantilever strength/ kN |
12.5 |
12.5 |
12.5 |
12.5 |
12.5 |
||
|
Average flashover voltage |
Low-frequency |
Dry/kV |
80 |
110 |
125 |
150 |
175 |
|
Wet/kV |
70 |
100 |
115 |
135 |
160 |
||
|
Critical-impulse |
Positive/ kV |
130 |
180 |
210 |
255 |
290 |
|
|
Negative/ kV |
155 |
205 |
260 |
340 |
380 |
||
|
Radio-influence voltage date |
Test voltage to Ground/ kV |
15 |
22 |
30 |
44 |
44 |
|
|
Maximum RIV at 1.000kc/μV |
100 |
100 |
200 |
200 |
200 |
||
|
Net weight each approx./kg |
7.5 |
10.5 |
12.7 |
16.8 |
9.5 |
||
|
Number in standard package |
6 |
3 |
3 |
2 |
2 |
||
